Lining a Chimney with Pumice Liners

Stove Help & Advice Home

It is also possible to line and insulate a chimney with stainless flexible chimney liner - click here for details of flexible liner.

Lining a chimney with pumice chimney liner

Pumice chimney liners provide a permanent masonary insulated chimney. We can supply pumice chimney liners and pre-formed chimney sections, both for new build chimneys and for re-lining existing chimneys. For your interest and to avoid confusion it is worth noting that pumice is often misspelt as 'pummice'.

For prices of our pumice liners see our Pumice chimney liner prices page.

Method for relining existing chimneys with pumice liners

pummice chimney liners uk The pumice chimney liners are lowered down from the top by a rope running beneath the first pumice liner. As it is lowered each 600mm length is jointed to the next using lip glue and steel collars. When the first pummice liner reaches the gather or support block at the bottom the rope is removed and the cavity is back filled using a 20:1 mix of leca chimney insulation and cement.

pummice chimney liners uk If there is a bend in the chimney then a hole is made in the chimney wall at that point, the first straight lengths of pumice liner are lowered down through that hole until that point is reached, then an offset is positioned and the rest of the straight sections of pumice liner lowered down onto that from above.

Creating a new chimney with pumice liners

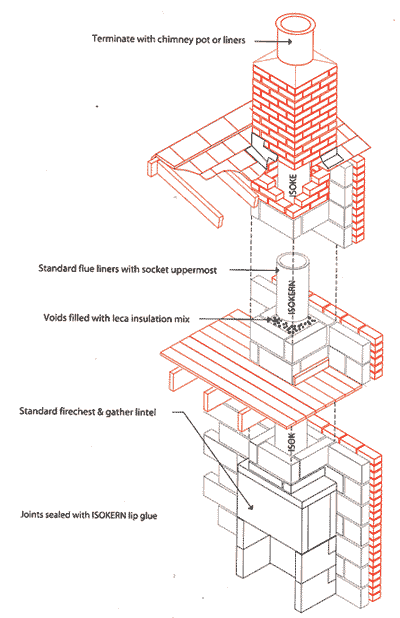

The picture below details a typical installation of pumice liners to create a new chimney for use with a fireplace.
typical installation of pummice chimney liners with a fireplace

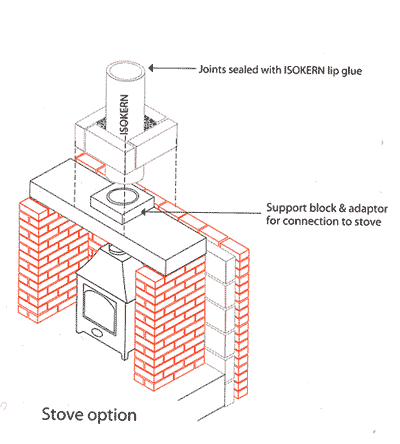

Below is the typical installation of pumice chimney liners when using a stove.
typical installation of pummice chimney liners with a stove

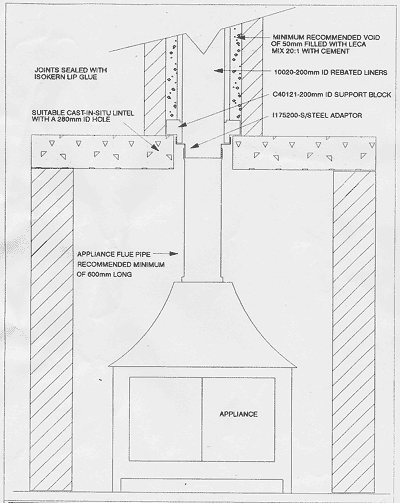

A more detailed front on view of a pummice liner system chimney for a stove:
n using a stove.
typical installation of pummice chimney liners with a stove

Pumice chimney liners are available in sizes from 130mm to 1000mm, although the common ones used for stoves are 125mm, 150mm, 175mm and 200mm, along with 15*, 30* and 45* bends, access blocks, support blocks, adaptors etc.

For prices of our pumice liners see our Pumice chimney liner prices page.
