DM pumice chimney system
Types of DM pumice chimney system
DM modular pumice liner system

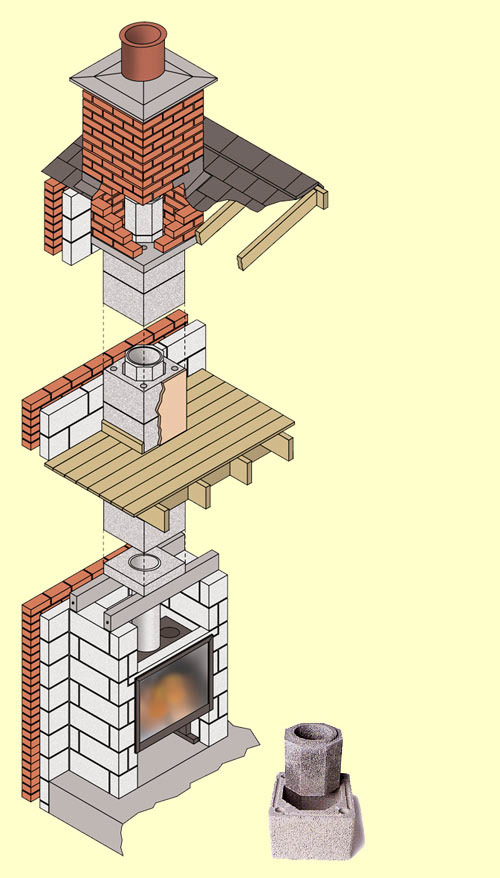

DM pumice liner is a modular block system and is a little like concrete lego (also Danish!). DM system is comprised of pumice inner liners and then a lightweight square concrete outer casing. The liners are glued together using lip glue and the outer casing normally jointed with sand cement mortar (the liner joints and block joints are staggered for strength). This forms the smallest masonry chimney possible.
What's so good about the DM pumice chimney system?- Combined material and labour costs usually work out less than 'normal' chimneys
- Very fast to install
- Can be installed as an add-on to an existing property
- Creates the smallest external diameter masonry chimney
- Ideal for timber framed buildings as it can make a completely freestanding chimney
- Lighter than alternatives
- Very neat finish that is ready for plastering, rendering or brickwork
- More thermally stable than other chimneys and therefore more able to withstand the high temperatures of a chimney fire
The combined material and labour cost for DM usually works out cheaper than standard pumice liner chimey systems. DM pumice liners are also very simple to install and you are not limited to erecting a certain maximum height of liners per day as you would be with a brick / block chimney. DM system is also an ideal retrofit product for renovation works and ideally suited to timber frame buildings as DM pumice liners can run unsupported with tensioned reinforcing rods running from the top of the chimney to the base to keep it in place.
DM 36 gives you a 150mm internal diameter pumice chimney suitable for most sizes of woodburning or multifuel stove.
With DM 44 you have a choice of making a 200mm or 225mm internal diameter pumice chimney, suited to larger stoves and inset stoves like the Dovre 2000 stove or Fondis inset stoves.
DM 54 lets you make a pumice chimney with an internal diameter of 300mm or 345mm. DM 54 is suited to open fires and fireplaces (not stoves).
Visit the pumice liner section of our Flue Design Service to get your free system design and quote.
Visit our DM Technical specifications page for further information.
| DM PUMICE CHIMNEY SYSTEM | |
| DM 36 - 150MM DIAMETER CHIMNEY | |
| DM 36 STARTER COMPONENTS | |
| 150MM LINER ADAPTER | £45.5 |
| 125MM-150MM LINER ADAPTER | £49.25 |
| 360MM SQUARE SUPPORT BLOCK | £19.5 |
| DM 36 CASINGS | |
| SQUARE CASING 250MM HIGH | £20.75 |
| SQUARE CASING AND SOOT DOOR 250MM HIGH | £135.75 |
| SQUARE CASING 45 DEGREE FLUE ENTRY KIT (4 PART) | £123 |
| OFFSET BLOCK | £47.25 |
| FLUE BLOCKS | |
| STARTER FLUE BLOCK | £17.5 |
| FLUE BLOCK | £17.5 |
| ACCESS FLUE BLOCKS (PAIR) | £45.5 |
| DM 36 CORBELS AND CAPPINGS | |
| SQUARE CORBEL FOR BRICKWORK | £57 |
| SQUARE CAPPING FOR RENDER | £41.75 |
| SQUARE CAPPING FOR BRICKWORK | £61.75 |
| SUNDRIES | |
| ISOKERN NOTICE PLATE | £8.25 |
| LIP GLUE | £10.75 |
| DM 44 - 200MM DIAMETER CHIMNEY | |
| DM 44 200MM STARTER COMPONENTS | |
| 200MM LINER ADAPTER | £48.5 |
| 150MM - 200MM LINER ADAPTER | £56 |
| 175MM - 200MM LINER ADAPTER | £56 |
| 200MM SQUARE SUPPORT BLOCK | £47.25 |
| DM 44 200MM CASINGS | |
| SQUARE CASING | £27.5 |
| SQUARE CASING AND SOOT DOOR | £135.75 |
| SQUARE CASING 45 DEGREE FLUE ENTRY KIT 200MM (4 PART) | £136.5 |
| 100MM HIGH OFFSET BLOCK 200MM | £50.5 |
| 150MM HIGH OFFSET BLOCK 200MM | £51.25 |
| DM 44 200MM PUMICE FLUE BLOCKS | |
| STARTER FLUE BLOCK 200MM | £20.5 |
| FLUE BLOCK 200MM | £23.25 |
| FLUE ACCESS BLOCKS 200MM (PAIR) | £60.25 |
| DM 44 CAPPINGS AND CORBELS | |
| SQUARE CAPPING FOR RENDER | £41.75 |
| SQUARE CAPPING FOR BRICKWORK | £61.75 |
| SQUARE CORBEL FOR BRICKWORK | £61.75 |
| SUNDRIES | |
| ISOKERN NOTICE PLATE | £8.25 |
| LIP GLUE | £10.75 |
| DM 44 - 225MM DIAMETER CHIMNEY | |
| DM 44 225MM STARTER COMPONENTS | |
| 225MM LINER ADAPTER | £56.75 |
| 200MM - 225MM LINER ADAPTER | £61.5 |
| 225MM SQUARE SUPPORT BLOCK | £49 |
| DM 44 200MM CASINGS | |
| SQUARE CASING | £27.5 |
| SQUARE CASING AND SOOT DOOR | £135.75 |
| 150MM HIGH OFFSET BLOCK 225MM | £46.75 |
| DM 44 225MM PUMICE FLUE BLOCKS | |
| STARTER FLUE BLOCK 225MM | £21.5 |
| FLUE BLOCK 225MM | £26 |
| 100MM HIGH OFFSET BLOCK 225MM | £50.25 |
| 150MM HIGH OFFSET BLOCK 225MM | £56.5 |
| DM 44 CAPPINGS AND CORBELS | |
| SQUARE CAPPING FOR RENDER | £41.75 |
| SQUARE CAPPING FOR BRICKWORK | £61.75 |
| SQUARE CORBEL FOR BRICKWORK | £61.75 |
| SUNDRIES | |
| ISOKERN NOTICE PLATE | £8.25 |
| LIP GLUE | £10.75 |
| DM 54 - 300MM DIAMETER CHIMNEY FOR FIREPLACES | |
| DM 54 300MM PUMICE FLUE BLOCKS | |
| FLUE STARTER BLOCK | £28.5 |
| FLUE BLOCK 300MM | £31 |
| OFFSET BLOCK | £64 |
| DM 54 CASINGS | |
| SQUARE CASING | £48.75 |
| DM 54 CORBELS AND CAPPINGS | |
| SQUARE CORBEL FOR BRICKWORK | £72.25 |
| SQUARE CAPPING FOR RENDER | £56.25 |
| SQUARE CAPPING FOR BRICKWORK | £66.25 |
| SUNDRIES | |
| ISOKERN NOTICE PLATE | £8.25 |
| LIP GLUE | £10.75 |
| DM 54 - 345MM DIAMETER CHIMNEY FOR FIREPLACES | |
| DM 54 345MM PUMICE FLUE BLOCKS | |
| 345MM STARTER FLUE BLOCK | £28.5 |
| 345MM FLUE BLOCK | £31 |
| 345MM OFFSET BLOCK | £64 |
| DM 54 CASINGS | |
| SQUARE CASING | £48.75 |
| DM 54 CORBELS AND CAPPINGS | |
| SQUARE CORBEL FOR BRICKWORK | £72.25 |
| SQUARE CAPPING FOR RENDER | £56.25 |
| SQUARE CAPPING FOR BRICKWORK | £66.25 |
| SUNDRIES | |
| ISOKERN NOTICE PLATE | £8.25 |
| LIP GLUE | £10.75 |
| DM PUMICE LINER ACCESSORIES | |
| CHIMNEY LINER EXTRAS | |
| BAG OF LECA | £16.75 |
| LIP GLUE | £10.75 |
| CASING WALL TIES - STAINLESS | £6 |
| 1000MM REINFORCEMENT ROD | £8 |
| 1200MM SUPPORT LINTEL | £27.25 |
| 1500MM SUPPORT LINTEL | £31.75 |
| ISOKERN NOTICE PLATE | £8.25 |
