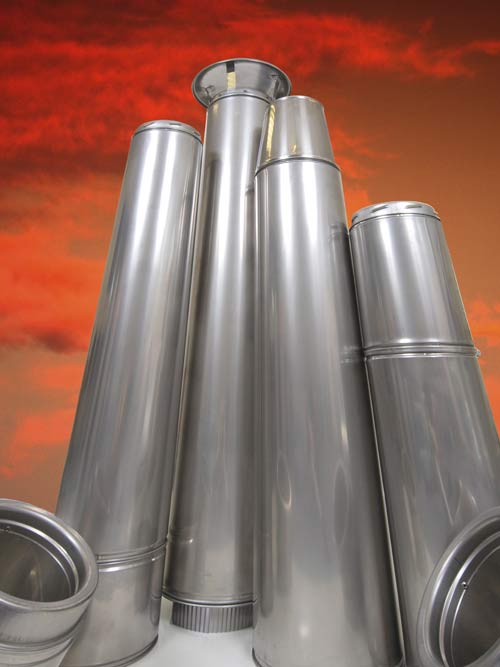

Selkirk STC - twin wall chimney. A twin wall insulated flue with welded seams and an inner layer made of 316 grade stainless steel, able to withstand corrosive flue gases given off by wood burning and multi fuel stoves. Selkirk STC flue can be used internally or externally as the outer layer is also made of stainless steel. The 25mm of insulation between the layers of Selkirk flue keeps the outside of the flue cool as well as ensuring that the flue gases remain warm, thus reducing the tar deposits that can cause chimney fires.
Selkirk twin wall flue has got around the problem of ventilated floor penetration components. Ventilated floor penentration components can allow the transmission of smoke into the room above. We see this as a big problem as most deaths in a house fire are caused by smoke inhalation. A new innovative ventilation system that has been fully tested and approved to EN1856 and allows the use of non ventilated floor penetration components when using Selkirk STC twin wall flue run through a bedroom or other storage space. Other twin wall flue manufacturers are now starting to see the sense of this and move to solid compontents. Click here for a broader discussion of the topic.
Selkirk also manufactuer an insulated roof penetration kit to avoid a cold bridge when penetrating a roof. You can find out more on this topic here
Selkirk flue may pass within 50mm of combustible materials making it very easy to install in existing houses. A full range of support components, bends and tees are also available.
Working lengths: 1181mm, 876mm, 572mm, 419mm, 267mm, and 114mm.
Given a few details we will design your Selkirk flue system for free - visit our Flue design page for more details.
125mm systems - building regulations advise a mimimum flue size of 150mm and HETAS installers may not fit or connect to a 125mm system. Read more about 125mm flue systems here.
Extra Selkirk flue information:
Flashings for twin wall insulated flue systems
Please be aware that we have three main types of flashings available for Selkirk flue systems going through tiled or slated roofs.
The first and most popular in the UK, is Lead Flashing.
A high quality code four lead, machine cut and welded specifically for Selkirk STC flue systems (as priced below), favoured by installers and developers as not only are they easy to use, but match the rest of the lead that is quite common on our properties.
Also, we have Seldek Nu lead and Alu Based flashings; suitable for just about any manufacturer of twin wall flue pipe or cylindrical pipe leaving a roof surface.
A large square based plate of lead, coated with Acrylead, which takes the form of any profiled roof tile, with an EPDM cone. This can withstand temperatures from -50 to 115 degrees, and seals against the flue pipe as it penetrates the flashing. This is also available with an Aluminium base, ideal for our flat slate roofs.
The EPDM cones are carefully cut to size on site, to suit the very diameter flue or pipe you are working with.
Selkirk flue introduction and information
Selkirk flue components - information about each component, how and where it is used. Also available as a downloadable pdf
and Stovesonline Selkirk flue fitting guidelines.
Official Selkirk flue brochure
Official Selkirk flue fitting instructions
Official Selkirk website
All prices are inclusive of VAT
|Selkirk twin wall flue||Product||125mm||150mm||175mm||200mm|
|SELKIRK FLUE ADAPTER||£15.00||£16.50||£18.75||£21.00|
|INCREASING ADAPTER 100MM TO 125MM||£44.50||£45.50||£61.50||£77.00|
|ADAPTER TO FLEX||£27.00||£29.25||£33.75||£37.00|
|SELKIRK WESTFIRE FLUE ADAPTOR||£38.00||£38.00||£38.00||£38.00|
|INCREASING COSMETIC COVER RING - BLACK||£22.00|
|COSMETIC COVER RING - BLACK||£22.00||£23.50||£25.75||£26.75|
|INCREASING COSMETIC COVER RING - SILVER||£22.00|
|COSMETIC COVER RING - SILVER||£22.00||£23.50||£25.75||£26.75|
|SELKIRK FLUE LENGTHS|
|900MM FLUE LENGTH||£107.50||£118.00||£134.50||£161.25|
|600MM FLUE LENGTH||£67.75||£76.00||£87.50||£105.00|
|450MM FLUE LENGTH||£59.50||£67.75||£78.25||£92.25|
|300MM FLUE LENGTH||£52.50||£60.75||£71.25||£83.00|
|150MM FLUE LENGTH||£29.00||£35.00||£43.25||£49.25|
|ADJUSTABLE FLUE LENGTH||£76.00||£87.50||£100.25||£118.00|
|SELKIRK LOCKING BANDS||£9.25||£9.25||£10.50||£10.50|
|STRUCTURAL LOCKING BAND||£70.25||£76.00||£82.00||£91.25|
|SELKIRK FLUE ELBOWS AND TEES|
|45 DEGREE ELBOW||£90.00||£102.75||£111.00||£118.00|
|30 DEGREE ELBOW||£89.00||£99.25||£107.50||£115.75|
|15 DEGREE ELBOW||£89.00||£99.25||£107.50||£115.75|
|90 DEGREE TEE AND PLUG||£137.75||£162.50||£176.50||£215.00|
|135 DEGREE TEE AND PLUG||£190.50||£204.50||£224.50||£295.50|
|INSULATED TEE PLUG||£21.00||£23.50||£26.75||£26.75|
|DRAIN TEE CAP||£58.50||£63.25||£66.50||£69.00|
|SELKIRK FLUE SUPPORTING COMPONENTS|
|SELKIRK ANCHOR PLATE||£31.50||£33.75||£37.50||£40.75|
|ROOF BRACE KIT||£83.00||£83.00||£83.00||£83.00|
|STAINLESS WALL BAND||£31.50||£32.75||£33.75||£36.25|
|GALVANISED WALL BAND||£18.75||£19.75||£21.00||£21.00|
|WALL BAND EXTENSION BRACKETS (STAINLESS)||£13.50|

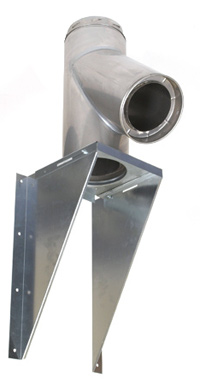

|ADJUSTABLE WALL SUPPORT BRACKET||£47.75||£53.75||£59.50||£60.75|
|INTERMEDIATE WALL SUPPORT BRACKET||£47.75||£53.75||£59.50||£60.75|
|SELKIRK FLUE PENETRATION COMPONENTS|
|VENTILATION GRILLE FOR BOXING IN||£9.25||£9.25||£9.25||£9.25|
|FLAT TRIM PLATE||£26.75||£30.50||£35.50||£38.75|
|45 DEGREE TRIM PLATE||£33.75||£35.00||£38.50||£43.00|
|30 DEGREE TRIM PLATE||£33.75||£35.00||£38.50||£43.00|
|ATTIC INSULATION SHIELD||£63.25||£70.25||£75.00||£77.25|
|FLASHING FOR TWIN WALL INSULATED FLUE SYSTEMS|
|20 DEGREE LEAD FLASHING||£85.75||£90.25||£112.00||£116.00|
|30 DEGREE LEAD FLASHING||£89.50||£94.00||£116.00||£123.50|
|40 DEGREE LEAD FLASHING||£93.75||£99.50||£119.75||£126.25|
|50 DEGREE LEAD FLASHING||£96.50||£102.50||£146.00||£126.25|
|SELDEK ALU ROOF FLASHING|
|SELDEK ALU ROOF FLASHING 160 300mm||£65.00|
|SELDEK LEAD ROOF FLASHING|
|SELDEK NU LEAD ROOF FLASHING 175 330MM||£78.50|
|SELKIRK FLUE TERMINATIONS|
|SELKIRK RAIN CAP||£31.50||£32.75||£37.50||£50.25|
|VEDETTE ANTI DOWNDRAUGHT COWL||£135.00||£164.75||£198.00||£278.50|
|SELKIRK ANTI DOWNDRAUGHT COWL||£84.25||£85.25||£87.50||£89.00|
|TALL CONE FLASHING - FOR SEDUM ROOFS||£59.50||£66.75||£73.50||£82.75|
|Stainless aspirator spinning cowl c/w coupling||£200.25||£204.50||£210.25||£214.75|
|DATA PLATE AND CHECKLIST||£8.00|
|HEAT RESISTANT BLACK SPRAY PAINT||£10.50|
|HIGH TEMPERATURE SEALANT - BEIGE||£11.25|
Please note that the drain tee plug cannot be used in conjunction with the adjustable wall support bracket - you must use the intermediate wall support bracket instead.
POWDER COATING SERVICE
BLACK: We can supply Selkirk STC flue pipe in a powder coated black finish. This gives an amazingly good finish which is also very hardwearing and suitable for external use. Just let us know which sections you would like powder coated. The black powder coated finish comes out very black indeed and is a slightly glossy finish as you can see in the picture. Please bear in mind that if you want a match for your stove then you are better off spraying the flue with high temp spray (which we can of course supply).
Black powder coated Selkirk STC flue costs 25% extra.
COLOURSWe can supply your flue pipe in custom colours. You need to supply us with the RAL number of your chosen colour, there is a 14 day lead time. Custom coloured finishes are 35% extra.
