Stratford boiler stoves

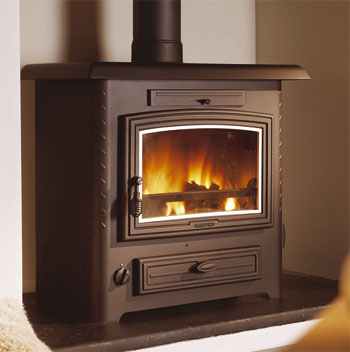

Heating your whole home with a stove is easy with a Stratford boiler stove. Stratford boiler stoves come in four different sizes: the TF30B with a boiler output of 25,000 BTU's, the TF50B with a boiler output of 45,000 BTU's, the TF70B with a boiler output of 60,000 BTU's and the TF90B with a boiler output of 80,000 BTU's. That range of outputs means that you can choose a Stratford stove to run just a few radiators in a couple of rooms or up size and power an entire heating system and how water.

All Stratford stoves come with a water temperature sensor. A dial on the stove lets you set how hot you want the water in the heating system to be. Whilst the water is not yet up to temperature the stove automatically gives itself a good supply of air, which means a nice hot fire. When the water has reached the desired temperature the stove automatically reduces it's air supply, cooling the fire. This makes for ease of operation and a more constant heat in your home.

Stratford stoves are multi fuel stoves and can run on wood or coal. They have a riddling grate and ingeniously the riddling mechanism doubles as a fuel setting. On the woodburning setting the grate is closed and the primary air comes in above the fuel because wood burns best with a supply of air from above. On the coal setting the grate is open and the primary air comes in from underneath as coal needs a good supply of air through the grate to burn well. Stratford stoves can burn overnight if needed - but you do need to be familiar with the operation of the stove to achieve this (generally we would try to discourage overnight burning as this usually means slow burning for long periods - this results is inefficient combustion, increased deposits in the stove and flue and potentially reduced lifespans of the stove and flue due to increased metal corrosion).

Stratford boiler stoves all have a preheated secondary air supply (so are cleanburning) and an airwash system to help keep the glass free of deposits.

To get an idea of how a Stratford stove actually powers your central heating and how the thermostat affects the operation of the stove why not check out this online demo of a Stratford stove heating system.

More information on the Stratford stove boiler and on how to best install a Stratford as part of a central heating system.

Stratford stove comparison table
	Stratford TF30 boiler stove	Stratford TF50B has been replaced by the Ecoboiler 20 stove	Stratford TF70 boiler stove	Stratford TF90 boiler stove
Output to room kW	2		3.5	4.5
Output to water kW	7.5		17.5	24
Output to water BTU	25,000		60,000	82,000
Number of radiators in average installation	3-5		12-14	17-19

The Stratford TF30 boiler stove is ideal for the smaller central heating installation which would normally incorporate 3-5 radiators.

The Stratford Ecoboiler 20 stove can produce more than 40,000 BTU and with the added bonus of extending the warranty to 3 years.

For full details please visit our dedicated Stratford Ecoboiler stove page

The Stratford TF70 boiler stove is designed for the larger house in mind with a boiler output of 60,000 BTU.

The Stratford TF90 boiler stove is central heating stove with a giant heat output of 82,000 which should be enough for a very large house – as always consult a heating engineer.

The great thing about a Ti40 is that it will fit into a Standard 22'' X 18'' or even a 22'' X 16'' fireplace. So suddenly your little fireplace is giving out 43,000 BTUs + a couple of kW to the room. As a fireplace it probably only gave 2-3 KW to the room anyway so for a similar fuel usage you've suddenly got rid of the draughts AND got seven hot radiators and a tank full of hot water. The Stratford Ti40B inset boiler stove gives out around 2kW to the room and 12.5kW to the water. The dimensions shown are for the part of the body of the stove which fits into the fireplace opening. The front of the Ti40 stove which sticks out infront of the fireplace opening has the following dimensions: width 572mm, height 594mm, depth 180mm.
