Single skin flue
Types of Single skin flue

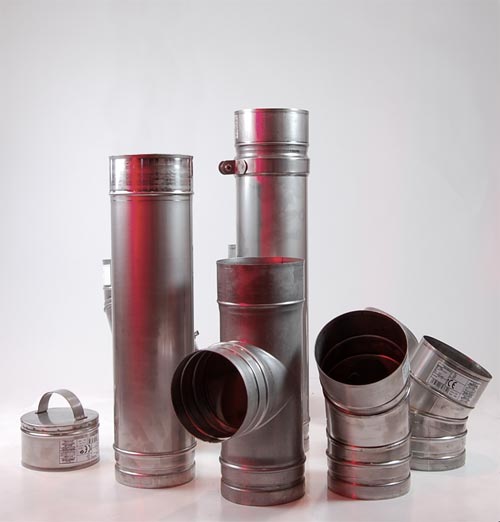

Single skin stainless flue pipe
316 grade single skin stainless steel flue pipe comes in 125mm, 150mm, 175mm and 200mm (5", 6", 7" or 8") diameter and in pipe lengths of 250mm, 500mm, 750mm and 1000mm, all with or without an inspection door.
We have a full range of stove flue pipe elbows and bends as well as 90 and 135 degree Tees (a Tee is an elbow with an access branch. A 90 degree Tee is always used for a rear flue when the chimney is lined).
Once installed, stainless steel flue can be sprayed with a black heat resistant paint if required
125mm systems - building regulations advise a mimimum flue size of 150mm and HETAS installers may not fit or connect to a 125mm system. Read more about 125mm flue systems here.
We can supply a full range of Specials to Order for those who need single skin stainless flue pipe that is that little bit different.
| Single skin stainless flue pipe | Product | 125mm | 150mm | 175mm | 200mm |
| JOINT CLIPS | ||||
| JOINT CLIP 125MM DIAMETER | £9.75 | £9.75 | £10.00 | £10.25 |
| FLUE PIPE LENGTHS | ||||
| 340-450MM ADJUSTABLE LENGTH | £53.00 | £65.75 | ||
| 250MM LENGTH | £32.00 | £32.00 | £36.50 | £40.75 |
| 500MM LENGTH | £43.25 | £43.25 | £49.25 | £55.75 |
| 750MM LENGTH | £61.50 | £61.50 | £70.25 | £79.00 |
| 1000MM LENGTH | £69.75 | £72.25 | £82.50 | £91.25 |
| TERMINALS | ||||
| STANDARD COWL | £46.25 | £46.25 | £58.75 | £60.25 |
| FLUE PIPE LENGTHS WITH DOOR | ||||
| 250MM LENGTH WITH DOOR | £52.75 | £52.75 | £60.75 | £71.25 |
| 500MM LENGTH WITH DOOR | £64.25 | £64.25 | £73.50 | £86.25 |
| 750MM LENGTH WITH DOOR | £87.50 | £87.50 | £96.25 | £104.50 |
| 1000MM LENGTH WITH DOOR | £97.75 | £97.75 | £112.50 | £130.00 |
| FLUE PIPE BENDS / ELBOWS AND TEES | ||||
| 90 DEGREE TEE | £94.25 | £94.25 | £103.50 | £114.00 |
| 135 DEGREE TEE | £109.00 | £109.00 | £115.50 | £130.00 |
| 15 DEGREE ELBOW | £39.50 | £39.50 | £44.75 | £51.25 |
| 30 DEGREE ELBOW | £39.50 | £39.50 | £44.75 | £51.25 |
| 45 DEGREE ELBOW | £40.50 | £43.00 | £50.25 | £57.50 |
| 90 DEGREE ELBOW | £51.75 | £51.75 | £57.25 | £64.25 |
| 15 DEGREE ELBOW WITH DOOR | £63.25 | £63.25 | £70.50 | £80.50 |
| 30 DEGREE ELBOW WITH DOOR | £63.25 | £63.25 | £70.50 | £80.50 |
| 45 DEGREE ELBOW WITH DOOR | £63.25 | £63.25 | £70.50 | £80.50 |
| 90 DEGREE ELBOW WITH DOOR | £77.25 | £77.25 | £88.00 | £99.50 |
| SPUN ADAPTORS FOR FLUE PIPE | ||||
| SPUN ADAPTORS | £32.00 | £32.00 | £33.25 | £34.25 |

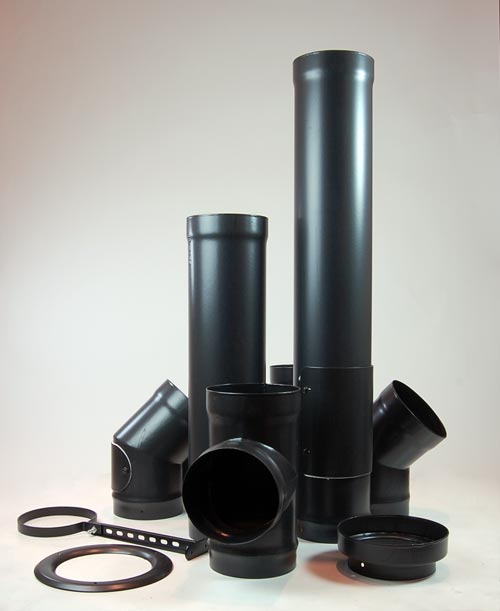

Enamelled flue pipe
Black enamel flue pipe comes in various diameters and lengths as shown below, with or without a flue inspection door.
A full range of enamel flue pipe elbows and tees and adaptors are also available.
Enamelled flue pipe can come in a matt black or glossy black finish.125mm systems - building regulations advise a mimimum flue size of 150mm if the stove is not Defra Exempt and HETAS installers may not fit or connect to a 125mm system if the stove is not Defra Exempt. Read more about 125mm flue systems here.
| Enamelled flue pipe | Product | 125mm | 150mm | 175mm | 200mm |
| FLUE PIPE LENGTHS | ||||
| 300MM LENGTH | £23.25 | £28.00 | £32.25 | £37.00 |
| 600MM LENGTH | £28.75 | £33.00 | £37.00 | £43.50 |
| 900MM LENGTH | £37.00 | £42.50 | £48.75 | £59.25 |
| 1200MM LENGTH | £49.00 | £53.50 | £59.25 | £73.50 |
| FLUE PIPE LENGTHS WITH DOOR | ||||
| 300MM LENGTH WITH DOOR | £32.25 | £37.00 | £41.00 | £46.25 |
| 600MM LENGTH WITH DOOR | £41.00 | £43.50 | £49.50 | £54.50 |
| 900MM LENGTH WITH DOOR | £49.50 | £52.75 | £65.25 | £70.00 |
| 1200MM LENGTH WITH DOOR | £59.50 | £63.75 | £70.00 | £84.25 |
| ENAMELLED ELBOWS AND TEES | ||||
| 90 DEGREE ENAMEL TEE | £85.50 | £89.75 | £135.50 | £141.00 |
| 45 DEGREE ELBOW WITH DOOR | £55.25 | £60.75 | £69.75 | £82.50 |
| 30 DEGREE ELBOW WITH DOOR | £55.25 | £60.75 | £69.75 | £82.50 |
| 15 DEGREE ELBOW | £42.75 | £48.50 | £56.75 | £69.75 |
| 30 DEGREE ELBOW | £42.75 | £48.50 | £56.75 | £69.75 |
| 45 DEGREE ELBOW | £42.75 | £48.50 | £56.75 | £69.75 |
| WALL BANDS AND ADAPTERS | ||||
| CUT LENGTH ADAPTER | £29.00 | £30.00 | £39.50 | |
| ENAMELLED WALL BAND | £23.50 | £24.75 | ||
| SPUN ADAPTER | £35.50 | £36.75 | £38.25 | |
Clay liner adapter
The clay liner adapter is designed to easily make a tar tight connection to existing clay liners. A spigot inserts up into the liner and the shoulder of the adapter then pushes up to meet the liner. Any tar that gets outside of the spigot is led back into the flue system through the shoulder. The clay liner adapter is held in place by two tabs either side of the skirt/shoulder. These tabs bend out and have screw holes for fixing.
I recommend allowing for a little bit of play in the flue pipe between the clay liner adapter and the stove, especially if the flue comes out of the top exit of the stove and straight up into the adapter. The stove expands a little when hot and so this needs to be taken up somewhere so make sure that there is a little bit of play. Consider using high temperature silicone as a sealant at the stove spigot or fire rope with fire cement on top.
Available for use with 175mm, 200mm and 225mm clay liners.
| Clay liner adapter | Product | 125mm | 150mm | 175mm | 200mm |
| ADAPTER FOR 175MM CLAY LINERS | ||||
| ADAPTER FOR 175MM CLAY LINERS | £106.00 | £106.00 | ||
| ADAPTER FOR 200MM CLAY LINER | ||||
| ADAPTER FOR 200MM CLAY LINER | £106.00 | £106.00 | £106.00 | £106.00 |
| ADAPTER FOR 225MM CLAY LINER | ||||
| ADAPTER FOR 225MM CLAY LINER | £106.00 | £106.00 | £106.00 | £106.00 |

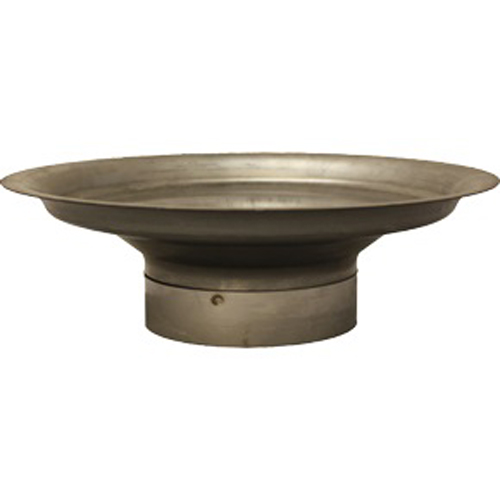

CLAY LINER SUMP ADAPTER
The clay liner sump adapter is a neat solution to an all too common problem. Often clay liners are installed badly without using the correct starter component. This leaves a flat surface (often a cast concrete slab or concrete lintels) to try to make a tar tight connection to. The sump adapter has a wide brim that is sealed to the surface available using high temperature silicone. A spigot then inserts into the flue pipe of the stove and any tar goes back into the flue pipe because of the shape of the sump adapter.
These Sump adapters are available with a 280mm or 330mm sized dish.
| CLAY LINER SUMP ADAPTER | Product | 125mm | 150mm | 175mm | 200mm |
| SUMP ADAPTER - 280MM DISH | ||||
SUMP ADAPTER WITH 280MM DISH | £64.75 | £69.75 | £74.25 | £80.25 |
| SUMP ADAPTER - 330MM DISH | ||||
| SUMP ADAPTER WITH 330MM DISH | £64.75 | £69.75 | £74.25 | £80.25 |
