Thermal Stores > EnergyStore Thermal Stores > EnergyStore Bio Duo Thermal Stores

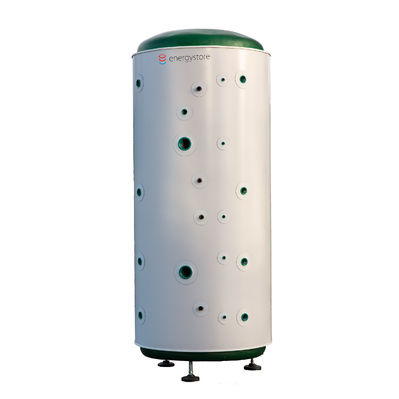

EnergyStore Bio Duo Thermal Stores


EnergyStore Bio Duo thermal stores are designed to work 'out of the box' with wood boiler stoves, wood pellet boilers and other types of biomass boiler. These thermal stores range in size from 500lt up to 3000lt as standard, with larger tanks available at request. There are tappings positioned for connecting the EnergyStore Bio Duo to the wood boiler as well as tappings intended for a conventional oil or gas boiler. On the heating side there are tappings for providing heat to your central heating system with a number of tappings to allow for various different configurations depending on the application.

  • Solid state, high surface area, two stage heat exchange coils provide plenty of mains pressure domestic hot water.
  • There are tappings specifically positioned for biomass boilers as well as ones for conventional boilers meaning an easier job for the installer.
  • EnergyStore thermal stores have removable and adjustable legs making it easier to get the tank into position.
  • Flush tappings make it easy to connect up pipes to the thermal store - simpler install and less parts and fittings needed.
  • Multiple probe/thermometer gauge points to allow for automated control and measurement.

If you would also like to combine your biomass boiler with a solar thermal hot water system then take a look at the EnergyStore Bio Quattro thermal stores, which have an extra 2 heat exchanger coils for solar thermal input.

Delivery charges vary depending on the volume of the store.

EnergyStore Bio Duo

Energystore bio duo thermal store for biomass

Key features :

  • Insulation – sprayed on polyurethane. Thickness – 100mm
  • Coils:
    Solar Coils – No
    Domestic Hot Water coil – Yes
    Pre-heat Domestic Hot Water coil - Yes
  • Coil material – Copper
  • Finned coils – Yes
  • Coil length:
    DHW coils – Lower 13.1m @ 22mm
    Upper 13.1m @ 22mm
  • Tank Baffle – Yes
  • Flush mounted tappings – Yes
  • Number of tapping points - 13 and 5 dry probe pockets
  • Suitable for open vented or pressurised systems - Yes
Contact Us Ring stovesonline on these phone numbers

Ring Stovesonline on 0845 226 5754 | 01308 458938 | 01237 473900 When you ring Stovesonline you will never be held in a queue, given options or made to listen to music. If we are too busy to answer immediately then simply leave your name and number on the answer phone and we will ring you straight back.

Or write to us via our enquiry system

EnergyStore Bio Duo details
PRODUCTHEIGHTDIAMETERWEIGHTPRESSURE RATINGPRICE
ENERGYSTORE BIO DUO 300 LT THERMAL STORE1975 MM695 MM160 kg3 BAR£2,360.00
ENERGYSTORE BIO DUO 500 LT THERMAL STORE2050 MM800 MM195 kg3 BAR£2,670.00
ENERGYSTORE BIO DUO 750 LT THERMAL STORE2100 MM950 MM235 kg3 BAR£2,875.00
ENERGYSTORE BIO DUO 1000 LT THERMAL STORE2150 MM1050 MM255 kg3 BAR£3,075.00
ENERGYSTORE BIO DUO 1500 LT THERMAL STORE2200 MM1250 MM325 kg3 BAR£3,715.00
